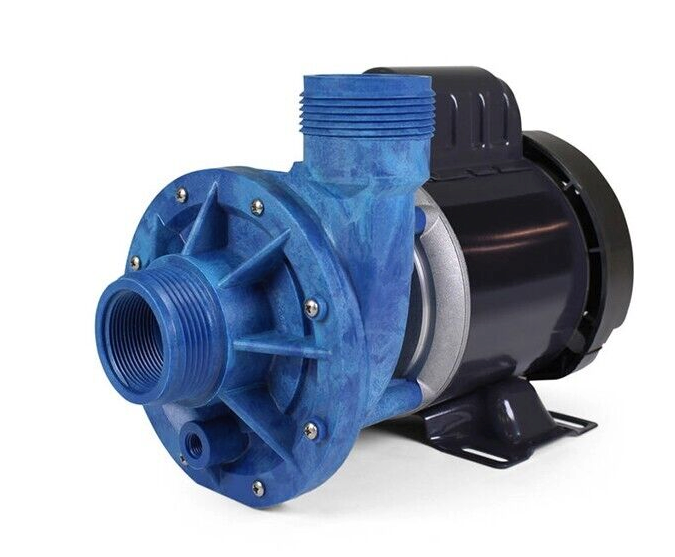

Aqua-flo by Gecko Circ Master (New Model)

The Aqua-Flo Circ-Master HP Circulation Pump distributed through Gecko Alliance. CMHP-550114 - please be aware, this is the HP version which is very common in the UK (side disharge), you may have a Aquaflo CP version (centre discharge wet end), this is also available in our shop. This replaces model number K55MYGRD-8367.

The blue wet end and black wet end are exactly the same, it just depends which supplier they come through...

Specifications

• Amps: 0.63
• Volts: 230
• Hz: 50
• RPM: 1425
• HP: 1/15
• Capacitor: 6uf
• Fittings: 1.5 inch

Ideal For

Used on many Spas including Hydrospa, Spaform, Hot Tubs Direct, Aegean, Leisurerite, Beachcomber (Hush Pump), and Sunrise. Master Spas part number X321820 and X321830.

Additional Info

This pump comes complete with unions and a 4-pin AMP plug.

Aqua-Flo new Circ-Master pump takes 24-hour filtration to a new level, delivering the highest GPM of any recirculation pump on the spa industry.

Higher GPM allows the Circ-Master to operate a high-flow heating system resulting in increased heating efficiency and up to four times the filtration. The Circ-Master also operates standard low-flow heating systems with increased reliability due to:

• 48 frame, continuous-duty construction with front and rear, permanently lubricated ball bearings for extended motor life. 1 speed Emerson motor.
• Carbon-graphite self-lubricating seal designed for continuous duty operation.
• 1 ½" inlet and outlet.
• Quick release compression fittings allow for easy installation or maintenance.
• Available in side discharge and center discharge models.
• True, continuous rated horsepower of 1/15.
• Quiet running.
