Extreme Hot Tubs

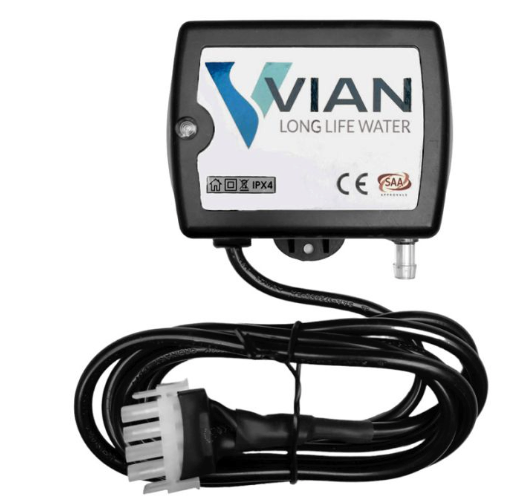

Vian Ozone
Vian Ozone
Regular price
£90.00
Regular price
Sale price
£90.00
Unit price
/
per
Tax included.
Couldn't load pickup availability
| Type of Product: | Ozone Generator |
| Manufacturer: | Vian |
| Box Quantity: | 12 |
| Power: | Volts: 240Hz: 50 |
| How it Works: | This Ozone activates usually, during a pre-programmed filter cycle, some Hot Tubs have a 24hr circulation and Ozone mode. We recommend that your Ozone should run for between 6 and 8 hours a day. The unit does not blow air, air is drawn through the Ozone on a venturi system. Usually, you will find a designated water jet plumbed into the shell of the Hot Tub somewhere near the centre or sometimes a drain. Water will pass through the jet sucking in air through the Ozone injector which will be connected to the Ozone. During a filter cycle, the Ozone unit will be powered up, the Corona Discharge mechanism will kick in and charge the oxygen with Ozone which enters the tub and in turn, helps to kill bacteria with the aid of the sanitizer in the water. |
| Compatible With: | This unit can be fitted to virtually any Hot Tub with a venturi system. This unit replaces the older style UV cylinder style unit, this latest version also replaces the previous version where you were not able to replace the chip. Can be used with Watkins, HotSpring, Master Spa, Jacuzzi, Cal Spa and more |
| Connections / Fixings: | Usually screws to an upright up as high as it can go. We advise that there should be a double air loop with a one-way valve (included) to stop water passing back through. The Ozone pipe is clear and can usually insert into a 3/8 inch air pipe connected to your venturi system, this will push fit into the Ozone unit. The ozone comes with a 3-wire, 4-pin AMP cord but can easily be swapped over with your original cable or by the adapter in related items below if needed. |
| Dimensions: | Length: 110 mm Width: 70 mm Depth: 35 mm |
| Additional Notes: | Waterproof electronics bayStainless steel ozone cell with pyrex shatterproof glass. Will not fail, ever.Stainless steel ozone output barb. Will not break or deteriorate, ever.ozone output is set to 50 mgs/hour.True ozone output LEDBest solution and value |
